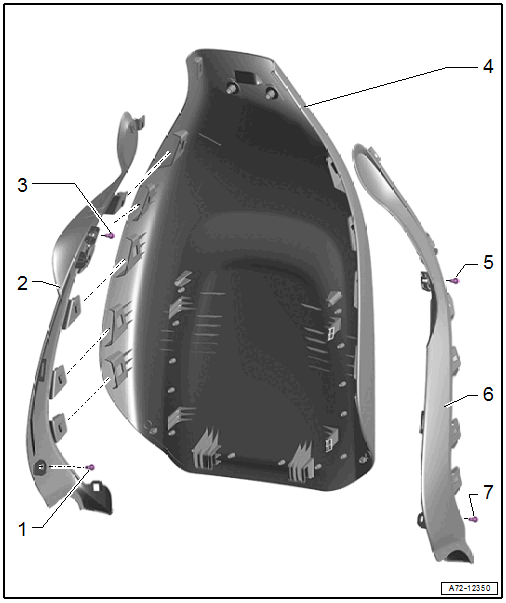

Overview - Front Backrest, Super Sport Seat Backrest Cover
WARNING: This page is about a different variant/trim than selected.
- Bolt
- 6.5 Nm
- Side Trim
- Removing and Installing. Refer to BACKREST COVER, REMOVING AND INSTALLING, SUPER-SPORT SEAT .
- Bolt
- 6.5 Nm
- Backrest Cover
- Removing and Installing. Refer to BACKREST COVER, REMOVING AND INSTALLING, SUPER-SPORT SEAT .
- Attach under the backrest frame and then press on it until it audibly locks in the side trim
- Bolt
- 6.5 Nm
- Side Trim
- Removing and Installing. Refer to BACKREST COVER, REMOVING AND INSTALLING, SUPER-SPORT SEAT .
- Bolt
- 6.5 Nm
