Headrest, Removing And Installing, Headrest With Height And Angle Adjuster: Removing

-- Move the headrest completely upward and forward.

-- Power versions: remove the backrest cover. Refer to BACKREST COVER, REMOVING AND INSTALLING, STANDARD/SPORT SEAT .

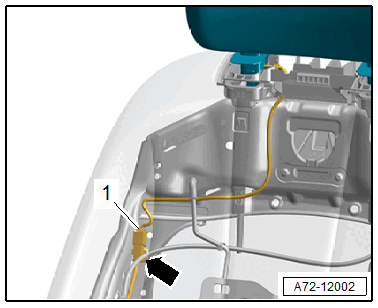

-- Disconnect the connector -1- for the headrest on the bracket -arrow- and free up the wire.

Courtesy of AUDI OF AMERICA, LLC

-- Grab the rear cover -1- at the lower edge and slide upward out of the locking mechanism in direction of -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Fold the rear trim -1- upward and disengage the hooks -arrows- from the front cover.

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the front trim -1- at both retainers -arrows- using a small screwdriver and remove it.

Courtesy of AUDI OF AMERICA, LLC

-- Position the backrest toward the rear at an angle.

Courtesy of AUDI OF AMERICA, LLC

-- Slide the gap covers upward, disengage the springs -arrow- toward the rear alternating at both headrest guides, and pull the headrest base upward at the same time.
