Headrest Guide, Removing And Installing, Headrest With Height And Angle Adjuster: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the backrest seat cover and cushion. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING, STANDARD/SPORT SEAT .
-- Equipped on some models: disconnect and free up the connector for the Rear Seat Entertainment System (RSE).
-- A5 Cabriolet, equipped on some models: remove the neck heating blower. Refer to LEFT AND RIGHT NECK HEATING FAN .

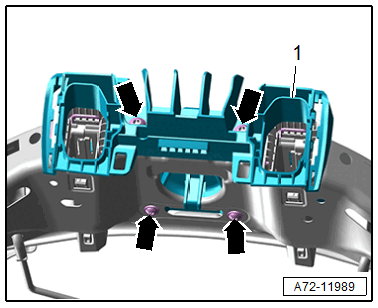

-- Remove the bolts -arrows-.
-- Disengage and remove the mount -1- at the hook on the backrest frame.
-- Press the tabs down at the same time in direction of -arrows-.
-- Remove the headrest guide -1- upward.
