Left And Right Neck Heating Fan :V450/:V451: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the backrest seat cover and cushion. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING, STANDARD/SPORT SEAT .

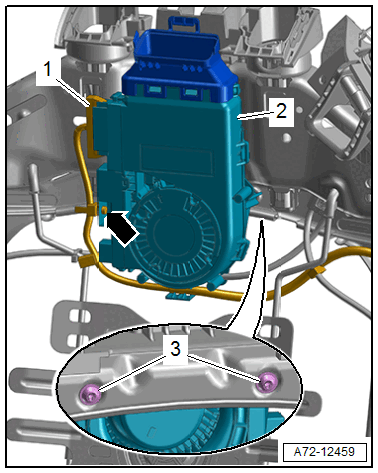

-- Press down on release to disconnect the connector -1-.
-- Unclip the wire bracket -arrow- and free up the wire.
-- Remove the bolts -3-.
-- Disengage the blower -2- for the neck heating on the backrest frame and remove.
