Backrest Bolster Adjuster Air Cushion, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
WARNING:
Risk of injury due to involuntary deployment.
- Pay attention to the safety precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING ON PYROTECHNIC COMPONENTS .
- Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". For example, this can be done by briefly touching the door striker.
-- Remove the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .
-- Remove the backrest seat cover and cushion. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING, SUPER SPORT SEAT .
-- For reinstallation, mark pneumatic lines at the separating point with a waterproof permanent marker.

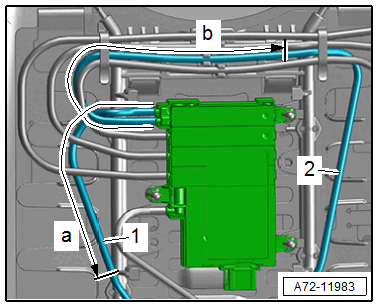

-- Disconnect the pneumatic line -1 and 2- at the following locations. Refer to PNEUMATIC LINES, DISCONNECTING AND CONNECTING .
- -a- = 200 mm
- -b- = 200 mm
-- Remove the clip -1-.
-- Pivot the backrest bolster adjuster air cushion -2- upward and remove from the connector -arrow-.
