Rear Seat Belt Latch, Removing And Installing, 2-Person Rear Seat: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the bench seat. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .

-- If installed, free up and disconnect the connector -1- for the seat belt switch.

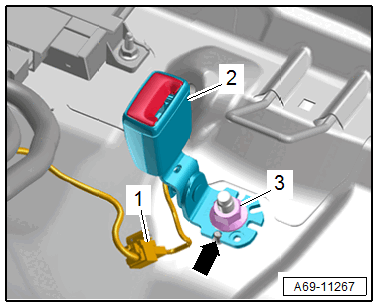

GWWA69-11267Courtesy of AUDI OF AMERICA, LLC

-- Remove the nut -3-.

-- Remove the seat belt latch -2-.
