Rear Seat Belt Guide, Removing And Installing, A5 Cabriolet: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the side trim panel. Refer to SIDE TRIM PANEL, REMOVING AND INSTALLING, A5 CABRIOLET .

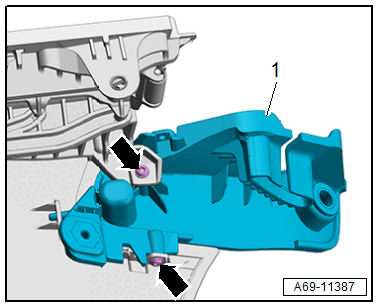

-- Remove the bolts -arrows- on the back of the side trim panel.

GWWA69-11387Courtesy of AUDI OF AMERICA, LLC

-- Disengage the seat belt guide -1- at the side trim panel and remove it.
