Outer Rear Seat Belt Guide, Removing And Installing, A5 Coupe: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the side trim panel. Refer to SIDE TRIM PANEL, REMOVING AND INSTALLING, A5 COUPE .
-- Remove the C-pillar trim panel. Refer to C-PILLAR TRIM PANEL, REMOVING AND INSTALLING, A5 COUPE .
CAUTION:
Risk of malfunction.

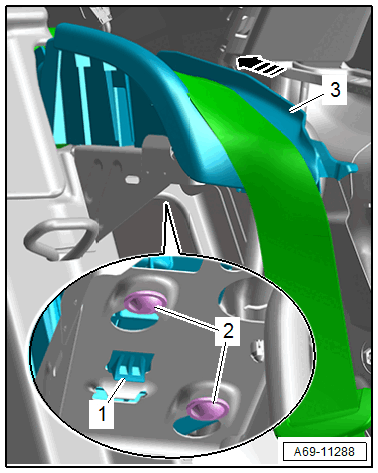

- Do not, under any circumstances, turn the bolts -2- when removing and installing the seat belt guide -3-. They are set by the manufacturer.
- Replace the entire seat belt guide if damaged.
-- Push the seat belt guide retaining hook -1- upward and hold it there.
-- Slide the seat belt guide -3- toward the rear in direction of -arrow- until the bolt heads -2- can be disengaged from the bracket on the body.
-- Disengage the seat belt guide from the bracket and remove toward the front.
-- Equipped on some models on the right side of the vehicle: disconnect the connector for the parking aid warning buzzer.
