Front Three-Point Seat Belt, Removing And Installing, A5 Coupe/SPORTBACK: Removing
Risk of injury due to involuntary deployment.
- Pay attention to the safety precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING ON PYROTECHNIC COMPONENTS .
- Observe the disposal regulations for pyrotechnic components. Refer to AIRBAG, BELT TENSIONER AND BATTERY CUT-OUT UNITS, STORING, TRANSPORTING AND DISPOSING (PYROTECHNIC COMPONENTS) .
-- Move the front seat all the way forward and up.
-- Disconnect the battery ground cable with the ignition turned on. Refer to BATTERY, DISCONNECTING AND CONNECTING .
-- Remove the front belt end fitting. Refer to FRONT BELT END FITTING, REMOVING AND INSTALLING .
-- Remove the B-pillar trim panel and guide out the seat belt webbing. Refer to B-PILLAR TRIM PANEL, REMOVING AND INSTALLING .
-- Remove the front seat belt guide. Refer to FRONT SEAT BELT GUIDE, REMOVING AND INSTALLING .

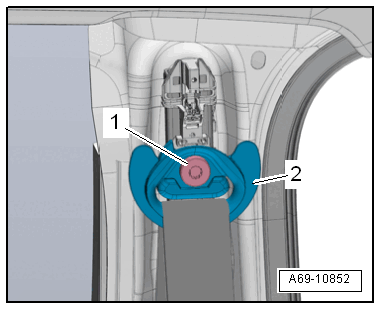

-- Remove the bolt -1-.
-- Remove the seat belt relay -2- with the seat belt webbing.

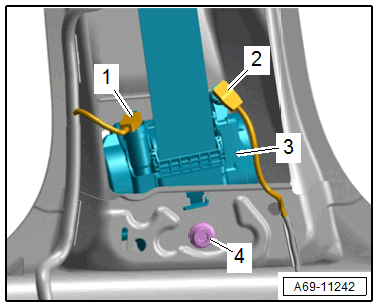

Version 1:
Risk of injury due to involuntary deployment.
- Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". For example, this can be done by briefly touching the door striker.
-- Pull the connector lock out, then disconnect the connectors -1 and 2- for the seat belt tensioner igniter and seat belt force limiter.
-- Remove the bolt -4- and then remove the automatic belt retractor -3- from the mount.

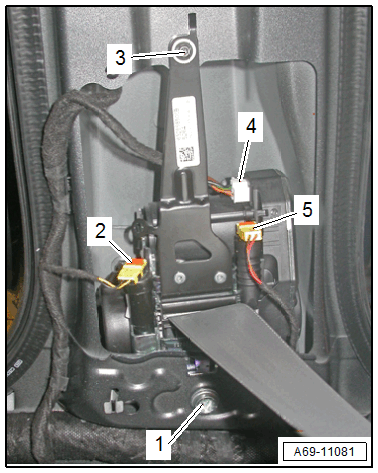

Version 2:
Risk of injury due to involuntary deployment.
- Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". For example, this can be done by briefly touching the door striker.
-- Pull the connector lock out, then disconnect the connectors -2 and 5- for the seat belt tensioner igniter and seat belt force limiter.
-- Push the release to disconnect the seat belt tensioner control module connector -4-.
-- Remove the bolts -1 and 3- and then remove the automatic belt retractor from the mount.
