Front Seat Belt Guide, Removing And Installing: Removing
-- Remove the B-pillar trim panel and move it to the side with the seat belt webbing. Refer to B-PILLAR TRIM PANEL, REMOVING AND INSTALLING .
A5 Coupe:
-- Hold the side trim panel and seat belt webbing to the side.
-- Release the catches -arrows- using a screwdriver one after the other and at the same time turn the seat belt guide -1- counter-clockwise.
-- Thread the seat belt webbing out and remove the seat belt guide.
A5 Sportback:
-- Remove the B-pillar upper trim panel bracket. Refer to B-PILLAR UPPER TRIM PANEL, REMOVING AND INSTALLING, A5 SPORTBACK .
-- Remove the B-pillar lower trim panels. Refer to B-PILLAR LOWER TRIM PANEL, REMOVING AND INSTALLING, A5 SPORTBACK .
-- Hold the seat belt webbing -2- to the side, press the brackets in direction of -arrows- together and remove the seat belt guide -1- upward.
-- Thread the seat belt webbing out and remove the seat belt guide.
Audi A5 Cabriolet:
-- Remove the side trim panel. Refer to SIDE TRIM PANEL, REMOVING AND INSTALLING, A5 CABRIOLET .

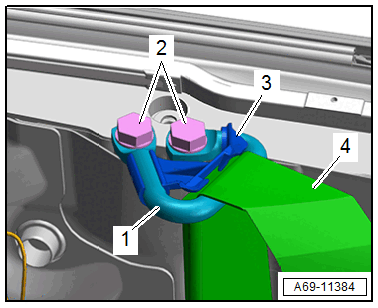

-- Unclip the seat belt guide -3- from the seat belt relay -1- and remove.
