Front Belt End Fitting, Removing And Installing, A5 Coupe: Removing

WARNING: This page is about a different variant/trim than selected.

-- Move the front seat all the way forward and up.

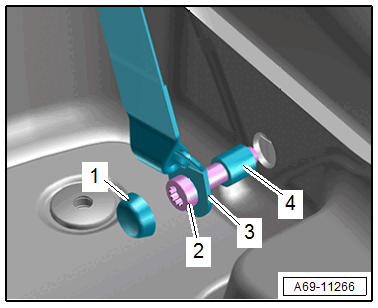

-- Pry off the cap -1- with a screwdriver.

GWWA69-11266Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -2-.

-- Remove the bolt with the belt anchor -3- and the stop sleeves -4-.
