Front Belt End Fitting, Removing And Installing, A5 Cabriolet: Removing
WARNING: This page is about a different variant/trim than selected.
-- Move the front seat all the way forward and up.
-- Remove the sill panel. Refer to SILL PANEL, REMOVING AND INSTALLING, A5 CABRIOLET .

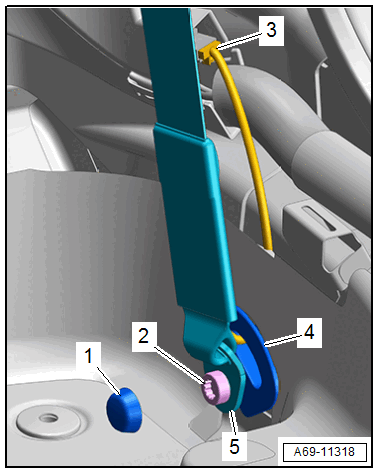

-- Release the connector lock to disconnect the seat belt microphone connector -3-.
-- Pry off the cap -1- with a screwdriver.
-- Remove the bolt -2-.
-- Remove the bolt with the belt end fitting -5- and the stop sleeves.
-- Disengage the wire cap -4- and guide out the wire.
