Front Belt Anchor, Removing And Installing, A5 SPORTBACK: Removing

WARNING: This page is about a different variant/trim than selected.

-- Move the front seat all the way forward and up.

Fig 1: Identifying Belt Relay Cover, Removal

Courtesy of AUDI OF AMERICA, LLC

-- Unclip the cover -1- on the belt end fitting in direction of -arrows- and fold it up.

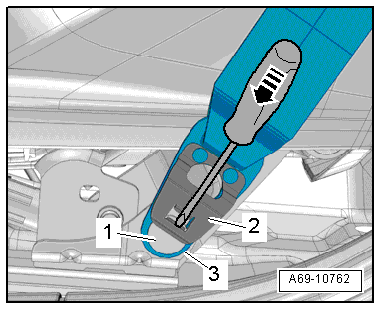

Fig 2: Identifying Three-Point Seat Belt, Removal

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of damaging the spring -2- if it is removed incorrectly.

So that the spring does not bend, only move it so far until the tab on the spring can be released.
Replace the three-point seat belt if the spring gets bent.

-- Release the spring catches -2- by inserting a small screwdriver in the opening in the spring in direction of -arrow-.

-- Slide the belt end fitting -3- downward and disengage at the pin -1-.
