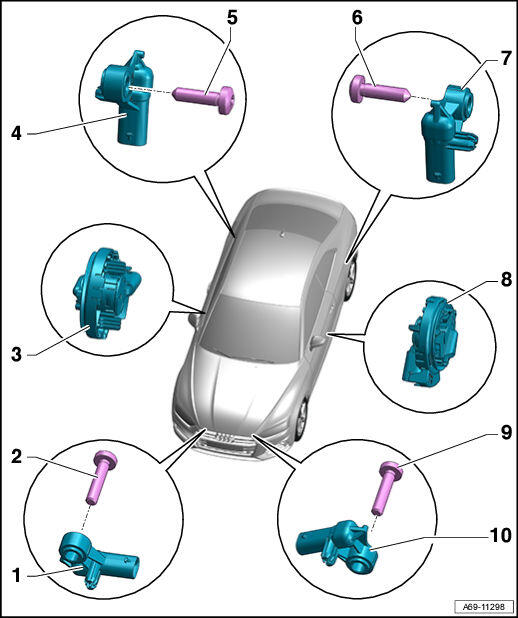

Component Location Overview - Airbag Crash Sensors
WARNING: This page is about a different variant/trim than selected.
NOTE:
The A5 Coupe is shows as the example.
- Passenger Side Front Airbag Crash Sensor -G284-
- Component location: right side of lock carrier
- Removing and Installing. Refer to Driver Front Airbag Crash Sensor -G283-, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Front Passenger Thorax Airbag Crash Sensor -G180-
- Component location: inside the door
- Safety Precautions. Refer to FRONT THORAX AIRBAG CRASH SENSORS (PRESSURE SENSORS) SAFETY PRECAUTIONS .
- Removing and Installing. Refer to Driver Thorax Airbag Crash Sensor -G179- /Front Passenger Thorax Airbag Crash Sensor -G180-, REMOVING AND INSTALLING .
- Make sure the seal is seated correctly. Replace the crash sensor if damaged or deformed
- The tabs must audibly engage
- Passenger Side Rear Thorax Airbag Crash Sensor -G257-
- Component location
- A5 Coupe/Cabriolet: behind the side trim panel
- A5 Sportback: behind the sill panel
- Removing and Installing. Refer to DRIVER SIDE REAR THORAX AIRBAG CRASH SENSOR -G256- / PASSENGER SIDE REAR THORAX AIRBAG CRASH SENSOR -G257-, REMOVING AND INSTALLING .
- Component location
- Bolt
- 9 Nm
- Bolt
- 9 Nm
- Driver Side Rear Thorax Airbag Crash Sensor -G256-
- Component location
- A5 Coupe/Cabriolet: behind the side trim panel
- A5 Sportback: behind the sill panel
- Removing and Installing. Refer to DRIVER SIDE REAR THORAX AIRBAG CRASH SENSOR -G256- / PASSENGER SIDE REAR THORAX AIRBAG CRASH SENSOR -G257-, REMOVING AND INSTALLING .
- Component location
- Driver Thorax Airbag Crash Sensor -G179-
- Component location: inside the door
- Safety Precautions. Refer to FRONT THORAX AIRBAG CRASH SENSORS (PRESSURE SENSORS) SAFETY PRECAUTIONS .
- Removing and Installing. Refer to Driver Thorax Airbag Crash Sensor -G179- /Front Passenger Thorax Airbag Crash Sensor -G180-, REMOVING AND INSTALLING .
- Make sure the seal is seated correctly. Replace the crash sensor if damaged or deformed
- The tabs must audibly engage
- Bolt
- 9 Nm
- Driver Front Airbag Crash Sensor -G283-
- Component location: left side of lock carrier
- Removing and Installing. Refer to Driver Front Airbag Crash Sensor -G283-, REMOVING AND INSTALLING .
