Lower Steering Column Trim Panel, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Move the steering wheel as far to the rear and down as possible. Use the full steering column adjustment range for this.

-- Turn the steering wheel counterclockwise 90° from the straight position.

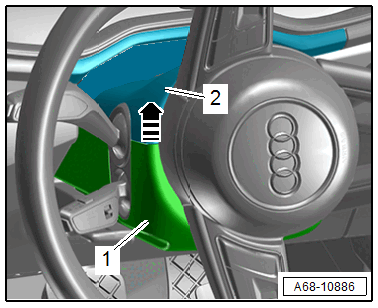

-- Carefully pry out the upper steering column trim panel -2- from the lower steering column trim panel -1- in direction of -arrow- using a small flat-head screwdriver.

Courtesy of AUDI OF AMERICA, LLC

-- Turn the steering wheel back 180° and repeat the procedure on the opposite side.

-- Disengage the upper steering column trim panel on the lower steering column trim panel and move upward to the side.

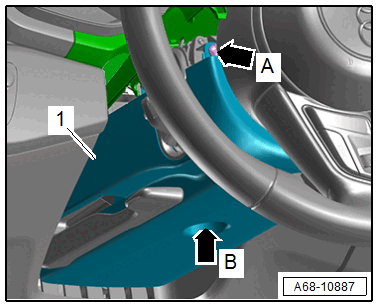

-- Remove the accessible bolt -arrow A- for the lower steering column trim panel.

Courtesy of AUDI OF AMERICA, LLC

-- Turn the steering wheel back 180° and remove bolt on the opposite side.

-- Bring the steering wheel back into the center (wheels are straight).

-- Remove the bolt -arrow B- and remove the lower steering column trim panel -1-.

-- Disengage the cable holder on the steering column trim panel.
