Front Center Armrest, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the center console (refer to CENTER CONSOLE, REMOVING AND INSTALLING ) and place it on a soft surface.

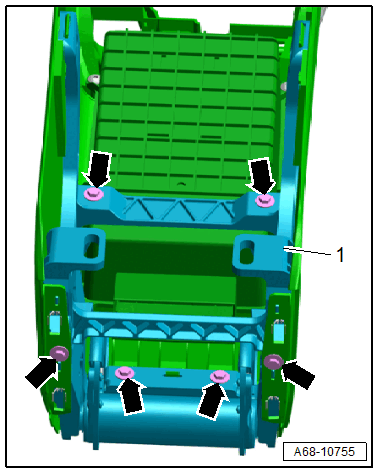

-- Remove the screws -arrows- for the center armrest -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Fold the center armrest up.

Courtesy of AUDI OF AMERICA, LLC

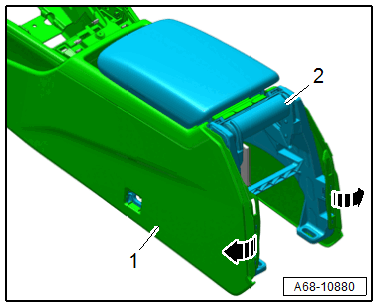

-- Disengage the side of the center console from the center armrest.

-- On the back of the center console -1-, push the sides outward in direction of -arrows- from the center armrest and remove the center armrest -2-.
