Wind Deflector Mount, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the side trim panel. Refer to SIDE TRIM PANEL, REMOVING AND INSTALLING, A5 CABRIOLET .
-- Remove the front belt end fitting. Refer to FRONT BELT END FITTING, REMOVING AND INSTALLING, A5 CABRIOLET .
-- Guide out the seat belt webbing and belt end fitting.
-- Remove the seat belt positioning motor. Refer to SEAT BELT POSITIONING MOTOR, REMOVING AND INSTALLING, A5 CABRIOLET .

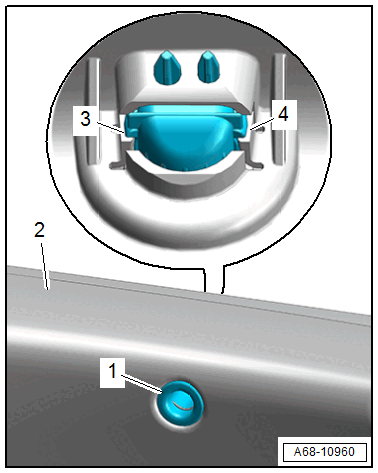

-- Release the retainers -3 and 4- on the back of the side trim panel using a screwdriver.
-- Push the wind deflector mount -1- out of the side trim panel -2- at the same time.
