Rear Center Console Vent, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
NOTE:
The vent has a hole on both sides for attaching the :T40207 .

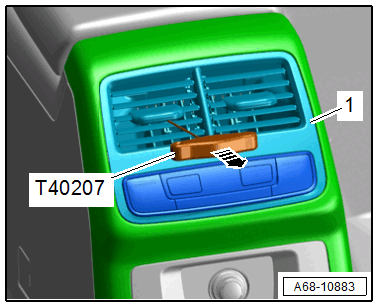

-- Carefully insert the :T40207 between the slats and hook it into the side of the vent.
-- Alternating between the sides, carefully remove the vent -1- from the installation opening in direction of -arrow-.
-- Disconnect the connector.
-- If the hook cannot be engaged, remove the center console rear trim. Refer to CENTER CONSOLE REAR TRIM, REMOVING AND INSTALLING .

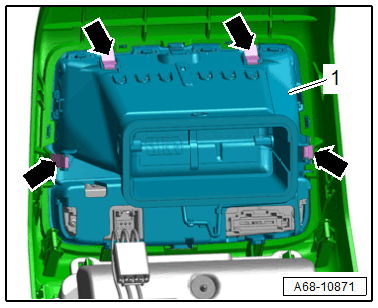

-- Release the vent -1- at the clips -arrows- and press it out of the trim at the same time.
