Rear Ashtray, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the center console rear trim. Refer to CENTER CONSOLE REAR TRIM, REMOVING AND INSTALLING .

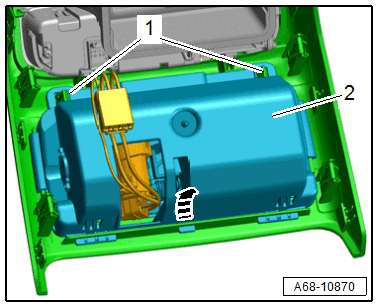

-- Release the ashtray -2- at the retainers -1-.
-- Disengage the ashtray upward from the trim in direction of -arrow- and remove it.
