Center Console Trim Panel, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Front passenger side center console trim panel: remove the center console trim panel. Refer to CENTER CONSOLE DECORATIVE TRIM, REMOVING AND INSTALLING .
-- Driver side center console trim panel: remove the front storage compartment in the center console. Refer to FRONT STORAGE COMPARTMENT, REMOVING AND INSTALLING .

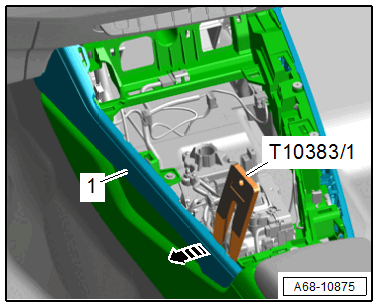

-- Starting at the back, unclip the center console trim panel -1- from the center console in direction of -arrow- using the :T10383/1 .
-- Disengage the remaining retainers for the center console trim panel and remove the trim panel.
