Windshield Wiper Motor -V-, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the windshield wiper arms. Refer to WINDSHIELD WIPER ARMS, REMOVING AND INSTALLING .
-- Remove the plenum chamber cover. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .

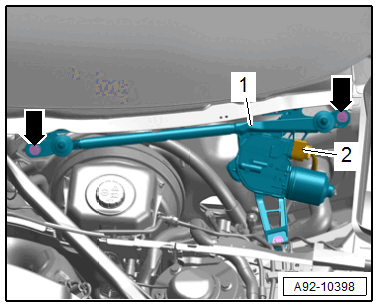

-- Disconnect the connector -2-.
-- Remove the bolts -arrows-.
-- Remove the windshield wiper frame -1- with linkage and windshield wiper motor from the plenum chamber.
