Windshield Washer Pump, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the washer fluid reservoir until the windshield washer pump is accessible. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .

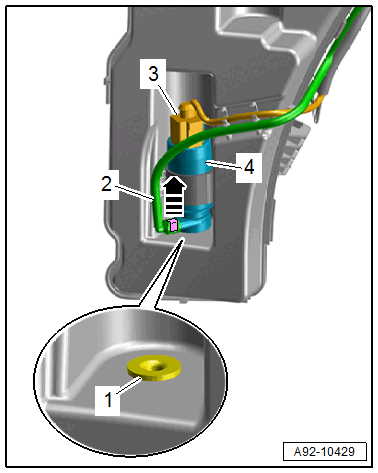

-- Disconnect the connector -3-.
-- Open the clip in direction of -arrow- and remove the washer fluid hose -2- from the windshield washer pump -4-.
-- Remove the windshield washer pump upward from the washer fluid reservoir.
