Washer Fluid Reservoir, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the filler neck cap.
- Front wheel is removed. Refer to Wheels and Tires .
-- Remove the right front wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

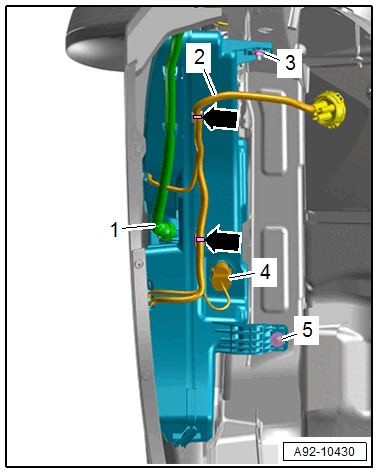

-- Free up the wiring harness -2- -arrows-.
-- Disconnect the connector -4-.
-- Remove the nuts -3 and 5-.
-- Place a drip tray under the washer fluid reservoir.
-- Remove the hose -1- on the Headlamp Washer System Pump -V11-.

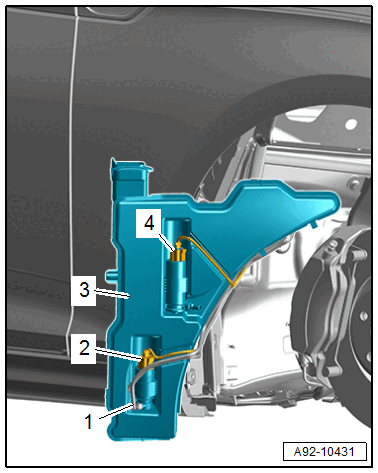

-- Tilt the washer fluid reservoir -3- down and forward.
-- Disconnect the connectors -2 and 4-.
-- Remove the washer fluid hose -1- from the windshield washer pump.
-- Remove the washer fluid reservoir.
