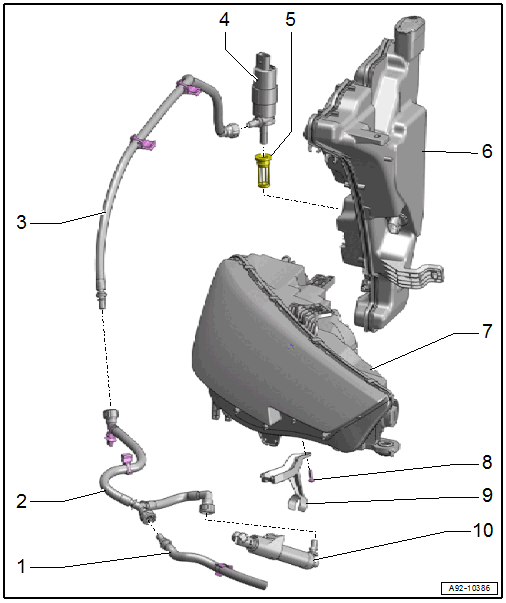

Overview - Headlamp Washer System
WARNING: This page is about a different variant/trim than selected.
- Washer Fluid Hose
- To the left washer nozzle
- Washer Fluid Hose Distributor
- To the washer nozzles
- Washer Fluid Hose
- From the headlamp washer system pump
- Headlamp Washer System Pump -V11-
- Removing and installing. Refer to Headlamp Washer System Pump -V11-, REMOVING AND INSTALLING .
- Grommet
- Replace if damaged
- Washer Fluid Reservoir
- Removing and installing. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .
- Headlamp Housing
- Bolt
- 1.5 Nm
- Bracket
- For the washer nozzle
- Removing and installing. Refer to WASHER NOZZLE BRACKET, REMOVING AND INSTALLING .
- Washer Nozzle
- Removing and installing. Refer to WASHER NOZZLES, REMOVING AND INSTALLING .
