Headlamp Washer System Pump -V11-, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.

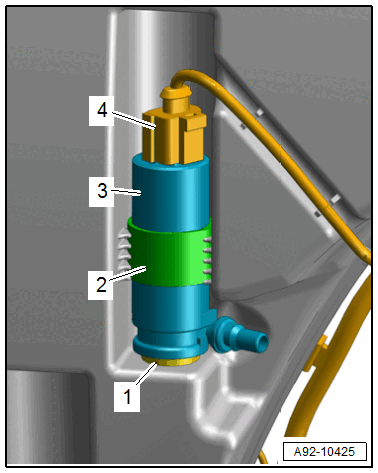

-- Remove the washer fluid reservoir until the headlamp washer system pump is accessible. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .
-- Disconnect the connector -4-.
-- Remove the headlamp washer system pump -3- from the washer fluid reservoir.
