Windshield Frame-Trim Panel, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the sun visors. Refer to SUN VISOR, REMOVING AND INSTALLING, A5 CABRIOLET .
-- Remove the sun visor center support. Refer to SUN VISOR CENTER SUPPORT, REMOVING AND INSTALLING .
-- Remove the vanity mirror light. Refer to OVERVIEW - ROOF TRIM PANEL LAMPS .
-- Remove the roof module. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .

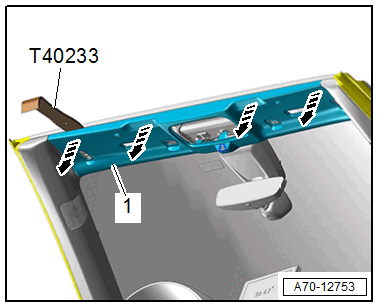

-- Unclip the windshield frame-trim panel -1- with the : T40233 from the windshield frames in direction of -arrows-.
