Rear Shelf, Removing And Installing: Removing

-- Fold the rear seat backrest forward.

-- Remove the C-pillar trim panels. Refer to C-PILLAR TRIM PANEL, REMOVING AND INSTALLING, A5 COUPE .

Vehicles with a Sound System:

Fig 1: Removing Bolts -1 And 2-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the left and right speaker trim in the rear shelf. Refer to SPEAKER TRIM, REMOVING AND INSTALLING, A5 COUPE .

-- Remove the bolts -1 and 2-.

Continued for All Versions:

Courtesy of AUDI OF AMERICA, LLC

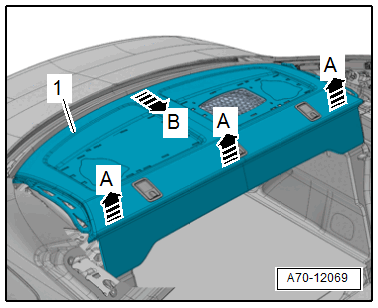

-- Unclip the rear shelf -1- at the front using the : 80-200  in direction of -A arrows-.

-- Pull the rear shelf forward out of the mounts in the rear window frame in direction of -arrow B- and remove.
