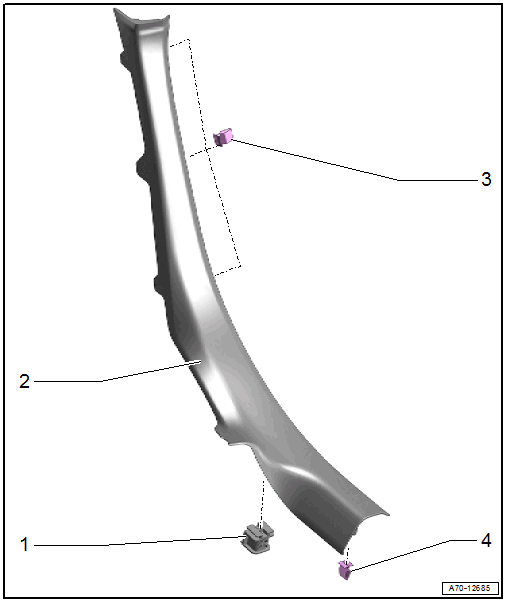

Overview - Sill Panel, A5 SPORTBACK
WARNING: This page is about a different variant/trim than selected.
- Clip
- Insert in the sill panel
- Sill Panel
- Removing and Installing. Refer to SILL PANEL, REMOVING AND INSTALLING, A5 SPORTBACK .
- Press on until it engages audibly
- Stretch the inner door seal lip over.
- Clip
- Replace damaged or deformed clips
- Insert in the sill panel
- Remove any remaining clips in the body mounting points using the Omega Clip Tool: T40280 . To install, insert into the sill panel.
- Quantity: 3
- Clip
- Replace damaged or deformed clips
- Insert in the sill panel
- Remove any remaining clips in the body mounting points using the Omega Clip Tool: T40280 . To install, insert into the sill panel.
