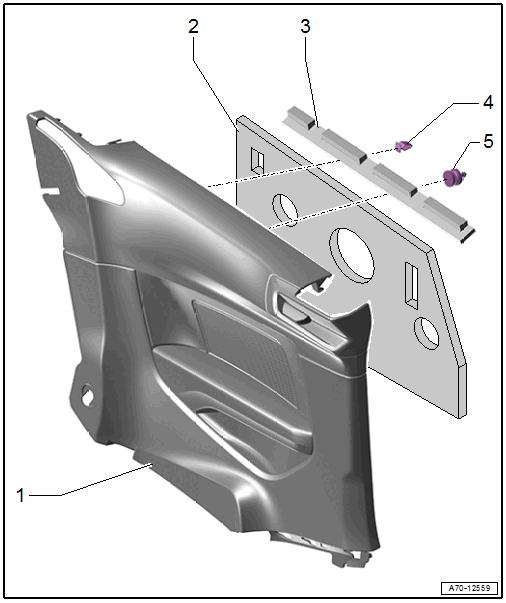

Overview - Side Trim Panel, A5 Coupe
WARNING: This page is about a different variant/trim than selected.
- Side Trim Panel
- Removing and Installing. Refer to SIDE TRIM PANEL, REMOVING AND INSTALLING, A5 COUPE .
- Press on until it engages audibly
- Insulation Mat
- Foam Strip
- Bonded on the side trim panel
- Clip
- Replace damaged or deformed clips
- Insert in the trim panel
- Remove any remaining clips in the body mounting points using the Omega Clip Tool: T40280 . To install, insert into the trim panel.
- Quantity: 8
- Clip
- Replace damaged or deformed clips
- For the side trim
- Insert in the trim panel
- Quantity: 3
