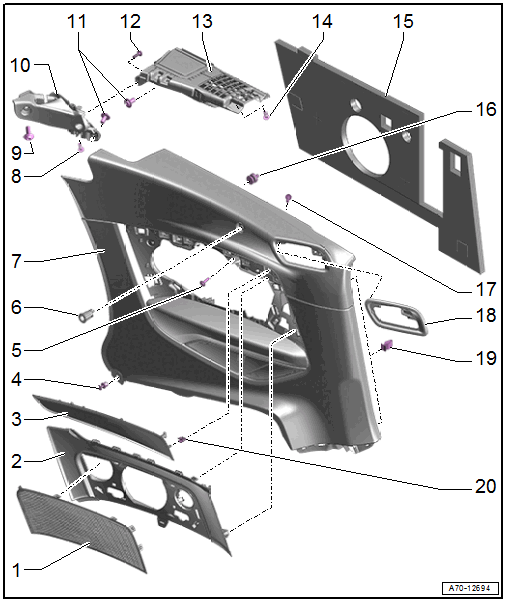

Overview - Side Trim Panel, A5 Cabriolet
WARNING: This page is about a different variant/trim than selected.
- Speaker Trim
- Removing and Installing. Refer to SPEAKER TRIM, REMOVING AND INSTALLING, A5 CABRIOLET .
- Engage in the cover and press on it until it engages audibly
- Side Trim Panel Center Section
- Removing and Installing. Refer to SIDE TRIM PANEL CENTER SECTION, REMOVING AND INSTALLING, A5 CABRIOLET .
- Insert in the side trim and press on it until it engages.
- Decorative Trim
- Removing and Installing. Refer to SIDE TRIM PANEL, REMOVING AND INSTALLING, A5 CABRIOLET .
- Insert in the side trim and press on it until it engages.
- Expanding Clip
- Remove using the Pliers: T40172C
- Bolt
- 2.8 Nm
- Wind Deflector Mount
- Removing and Installing. Refer to WIND DEFLECTOR MOUNT, REMOVING AND INSTALLING .
- Clip in the side trim panel and press on it until it engages
- Side Trim Panel
- Removing and Installing. Refer to SIDE TRIM PANEL, REMOVING AND INSTALLING, A5 CABRIOLET .
- Press on until it engages audibly
- Bolt
- Tightening specification. Refer to -Item 6- OVERVIEW - OUTER REAR THREE-POINT SEAT BELT, A5 CABRIOLET - List Item: Bolt .
- Bolt
- 9 Nm
- Rear Seat Belt Guide
- Removing and Installing. Refer to REAR SEAT BELT GUIDE, REMOVING AND INSTALLING, A5 CABRIOLET .
- Bolts
- 9 Nm
- Bolt
- Tightening specification. Refer to -Item 5- OVERVIEW - OUTER REAR THREE-POINT SEAT BELT, A5 CABRIOLET - List Item: Bolt .
- Convertible Top Frame Flap
- Removing and Installing. Refer to CONVERTIBLE TOP FRAME FLAP, REMOVING AND INSTALLING, A5 CABRIOLET .
- Bolt
- 1.5 Nm
- Quantity: 4
- Insulation Mat
- Clip
- Replace damaged or deformed clips
- For the side trim
- Insert in the trim panel
- Quantity: 2
- Bolt
- 1.5 Nm
- Quantity: 2
- Seat Belt Outlet Trim
- Removing and Installing. Refer to SEAT BELT OUTLET TRIM, REMOVING AND INSTALLING, A5 CABRIOLET .
- Clip
- Replace damaged or deformed clips
- Insert in the trim panel
- Remove any remaining clips in the body mounting points using the Omega Clip Tool: T40280 . To install, insert into the trim panel.
- Quantity: 3
- Clip
- Replace damaged or deformed clips
- Insert in the trim panel
- Quantity: 5
