Overview - Rear Shelf

WARNING: This page is about a different variant/trim than selected.

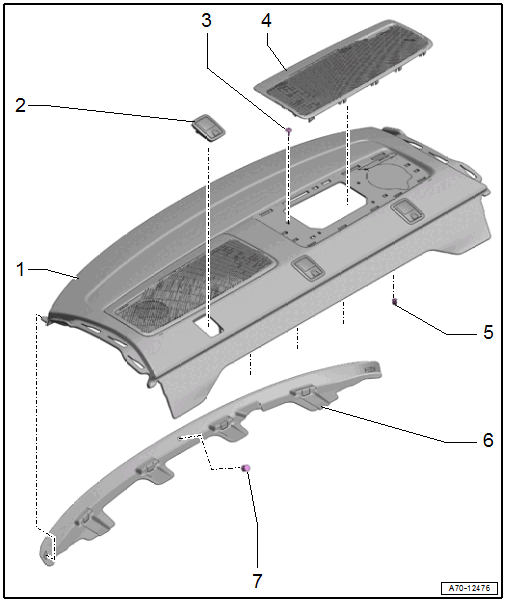

Fig 1: Exploded View Of Rear Shelf

Courtesy of AUDI OF AMERICA, LLC

Rear Shelf
- Removing and Installing. Refer to REAR SHELF, REMOVING AND INSTALLING .
- Insert the rear shelf in the rear window frame and press on the shelf until it clicks into place
Child Seat Anchor Cap
- Press on until it engages audibly
- Equipped on some models, quantity: 2 or 3
- Removing and Installing. Refer to UPPER CHILD SEAT ANCHOR COVER IN REAR SHELF, REMOVING AND INSTALLING .
Bolt
- 2 Nm
- Quantity: 4
Speaker Trim
- Equipped on some models
- Removing and Installing. Refer to SPEAKER TRIM, REMOVING AND INSTALLING, A5 COUPE .
- Insert in the rear shelf and press on it until it clicks into place
- Quantity: 2
Clip
- Replace damaged or deformed clips
- Insert in the rear shelf
- Remove any remaining clips in the body mounting points using the Omega Clip Tool: T40280 . To install, insert into the trim panel.
- Quantity: 4
Rear Window Frame Trim Panel
- Removing and Installing. Refer to REAR SHELF, REMOVING AND INSTALLING .
Expanding Clip
- Remove using the Pliers: T40172C
