Overview - D-Pillar Trim Panel
WARNING: This page is about a different variant/trim than selected.

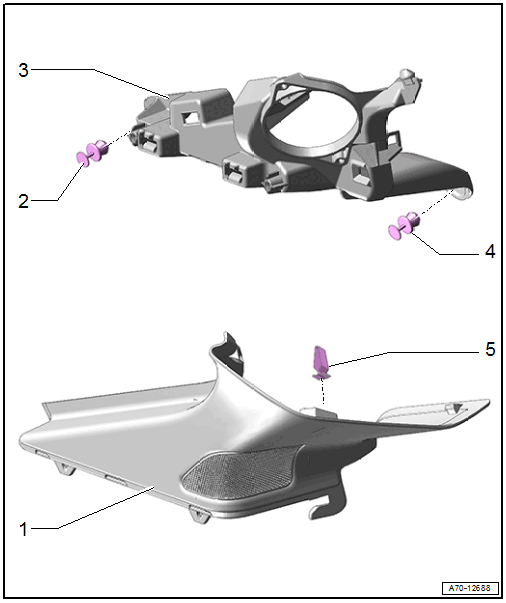

- D-Pillar Trim Panel
- Removing and Installing. Refer to D-PILLAR TRIM PANEL, REMOVING AND INSTALLING .
- Press on until it engages audibly
- Stretch the lip of the rear lid seal over
- Expanding Clip
- Remove using the Pliers: T40172C
- Bracket
- D-Pillar Trim Panel
- Removing and Installing. Refer to D-PILLAR TRIM PANEL, REMOVING AND INSTALLING .
- Expanding Clip
- Remove using the Pliers: T40172C
- Clip
- Replace damaged or deformed clips
- Insert in the trim panel
- Remove the clips that are still in the body mounting points using the Omega Clip Tool: T40280 .
