Overview - C-Pillar Trim Panel, A5 SPORTBACK
WARNING: This page is about a different variant/trim than selected.

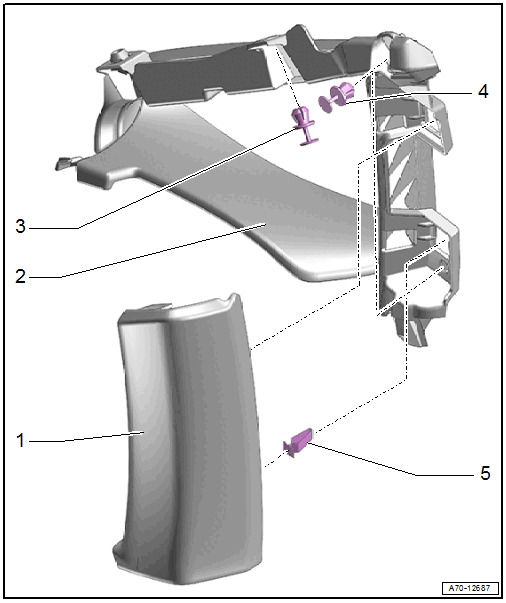

- C-Pillar Trim Panel
- Removing and Installing. Refer to C-PILLAR TRIM PANEL, REMOVING AND INSTALLING, A5 SPORTBACK .
- Press on until it engages audibly
- C-Pillar Upper Trim Panel
- Removing and Installing. Refer to C-PILLAR UPPER TRIM PANEL, REMOVING AND INSTALLING, A5 SPORTBACK .
- Engage in the head curtain airbag guide and press on it until it engages audibly
- Expanding Clip
- Remove using the Pliers: T40172C
- Expanding Clip
- Remove using the Pliers: T40172C
- Quantity: 2
- Clip
- Replace damaged or deformed clips
- Insert in the trim panel
- Remove the clips that are still in the mounting points on the body using the Omega Clip Tool: T40280 .
- Quantity: 2
