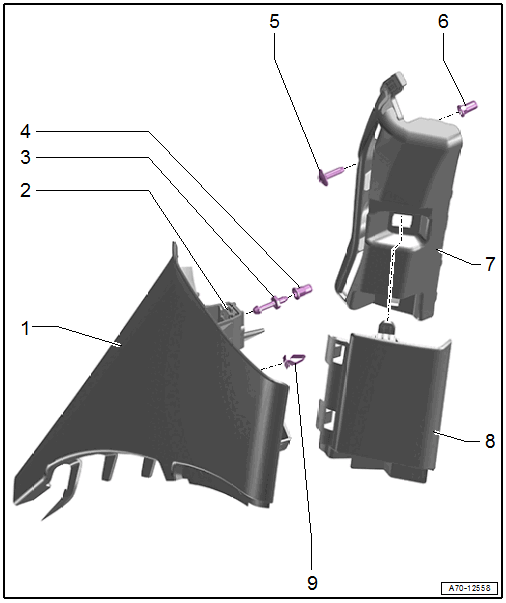

Overview - C-Pillar Trim Panel, A5 Coupe
WARNING: This page is about a different variant/trim than selected.
- C-Pillar Trim Panel
- Push on the C-pillar cover until it completely engages
- Press on until it engages audibly
- Removing and Installing. Refer to C-PILLAR TRIM PANEL, REMOVING AND INSTALLING, A5 COUPE .
- Clip
- With hooks
- Remove the C-pillar trim panel after removal
- Insert in the trim panel
- Retaining Pin
- 3.5 Nm
- Pop Rivet Nut
- Riveted in the C-pillar
- Bolt
- 5 Nm
- Pop Rivet Nut
- Riveted in the C-pillar
- Head Curtain Airbag Guide
- Insert in the mounting points on the roof
- C-Pillar Cover
- Removing and Installing. Refer to C-PILLAR TRIM PANEL, REMOVING AND INSTALLING, A5 COUPE .
- Engage in the head curtain airbag guide and press on it until it engages audibly
- Clip
- Replace damaged or deformed clips
- Insert in the trim panel
- Remove the clips that are still in the mounting points on the body using the Omega Clip Tool: T40280 .
