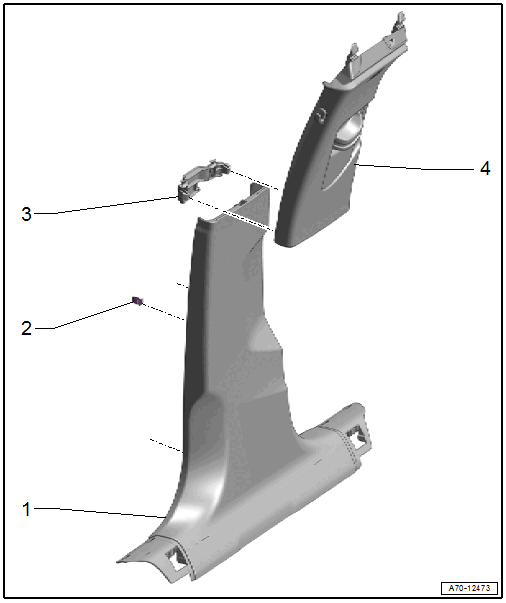

Overview - B-Pillar Trim Panel, A5 SPORTBACK
WARNING: This page is about a different variant/trim than selected.
- B-Pillar Lower Trim Panel
- Removing and Installing. Refer to B-PILLAR LOWER TRIM PANEL, REMOVING AND INSTALLING, A5 SPORTBACK .
- Clipped in the B-pillar
- Press on until it engages audibly
- Stretch the door seal lip over.
- Clip
- Replace damaged or deformed clips
- Insert in the trim panel
- Remove any remaining clips in the body mounting points using the Omega Clip Tool: T40280 . To install, insert into the trim panel.
- Quantity: 3
- Bracket
- For B-pillar upper trim panel
- Removing and Installing. Refer to B-PILLAR UPPER TRIM PANEL, REMOVING AND INSTALLING, A5 SPORTBACK .
- Clipped in the B-pillar
- Press on it until it locks
- B-Pillar Upper Trim Panel
- Removing and Installing. Refer to B-PILLAR UPPER TRIM PANEL, REMOVING AND INSTALLING, A5 SPORTBACK .
- Insert in the upper part of the mounting points on the roof and clip into the bracket
- Press on until it engages audibly
- Stretch the door seal lip over.
