Overview - B-Pillar Trim Panel, A5 Coupe
WARNING: This page is about a different variant/trim than selected.

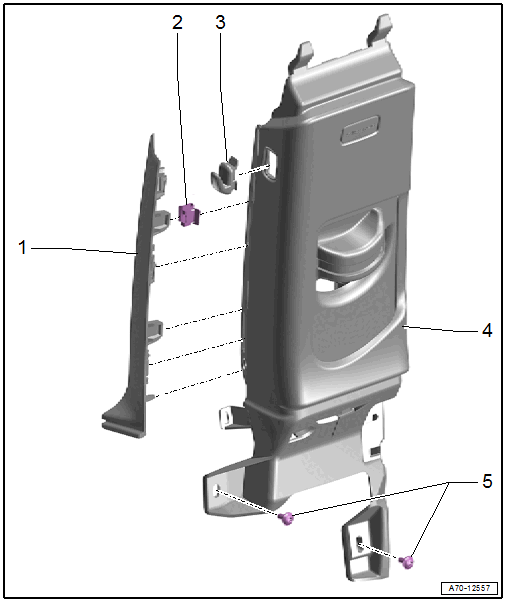

- B-Pillar Cover
- Removing and Installing. Refer to B-PILLAR TRIM PANEL, REMOVING AND INSTALLING, A5 COUPE .
- Push on the B-pillar trim panel until it completely engages
- Clip
- Clipped in the B-pillar
- Quantity: 2
- Coat Hook
- Clipped in the B-pillar trim panel
- B-Pillar Trim Panel
- Removing and Installing. Refer to B-PILLAR TRIM PANEL, REMOVING AND INSTALLING, A5 COUPE .
- Insert in the mounting point on the roof and push on until it completely engages in the B-pillar
- Stretch the inner door seal lip over.
- Bolts
- 4.5 Nm
- Replace after removing.
- Clean the threaded hole for the bolt with a thread tap, for example
- Use locking fluid when installing the bolt. Refer to the Parts Information for the locking fluid.
