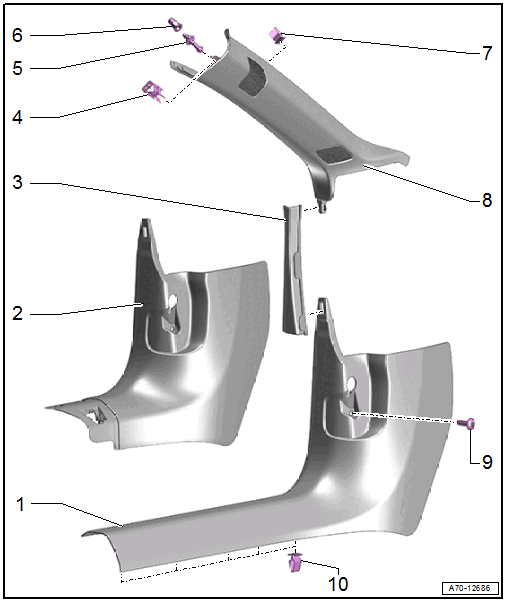

Overview - A-Pillar Trim Panel, A5 Coupe/SPORTBACK
WARNING: This page is about a different variant/trim than selected.
- A-Pillar Lower Trim Panel, Sportback
- Removing and Installing. Refer to A-PILLAR LOWER TRIM PANEL, REMOVING AND INSTALLING, A5 SPORTBACK .
- Pushed forward in the carpet
- Stretch the inner door seal lip over.
- A-Pillar Lower Trim Panel, Coupe
- Removing and Installing. Refer to A-PILLAR LOWER TRIM PANEL, REMOVING AND INSTALLING, A5 COUPE/CABRIOLET .
- Pushed forward in the carpet
- Stretch the inner door seal lip over.
- A-Pillar Gap Cover
- Removing and Installing. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .
- Clip into the A-pillar trim panels
- Stretch the inner door seal lip over.
- Clip
- Replace after removing the A-pillar trim panel
- With hooks
- Insert in the trim panel
- Retaining Pin
- 3.5 Nm
- Pop Rivet Nut
- Riveted into the A-pillar
- Clip
- Replace damaged or deformed clips
- Insert in the trim panel
- Remove the clips that are still in the mounting points on the body using the Omega Clip Tool: T40280 .
- A-Pillar Upper Trim Panel
- Removing and Installing. Refer to A-PILLAR UPPER TRIM PANEL, REMOVING AND INSTALLING, A5 COUPE/SPORTBACK .
- Press on until it engages audibly
- Stretch the inner door seal lip over.
- Bolt
- 2.5 Nm
- Only driver side
- Clip
- Replace damaged or deformed clips
- Insert in the trim panel
- Remove the clips that are still in the mounting points on the body using the Omega Clip Tool: T40280 .
- Quantity: 4
