Overview - A-Pillar Trim Panel, A5 Cabriolet

WARNING: This page is about a different variant/trim than selected.

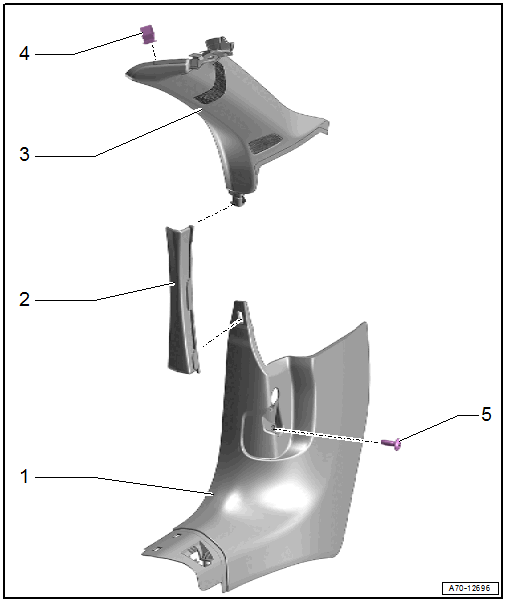

Fig 1: Exploded View Of A-Pillar Trim Panel (A5 Cabriolet)

Courtesy of AUDI OF AMERICA, LLC

A-Pillar Lower Trim Panel
- Removing and Installing. Refer to A-PILLAR LOWER TRIM PANEL, REMOVING AND INSTALLING, A5 COUPE/CABRIOLET .
- Pushed forward in the carpet
- Stretch the inner door seal lip over.
A-Pillar Gap Cover
- Removing and Installing. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .
- Clip into the A-pillar trim panels
- Stretch the inner door seal lip over.
A-Pillar Upper Trim Panel
- Removing and Installing. Refer to A-PILLAR UPPER TRIM PANEL, REMOVING AND INSTALLING, A5 CABRIOLET .
- Press on until it engages audibly
- Stretch the inner door seal lip over.
Clip
- Replace damaged or deformed clips
- Insert in the trim panel
- Remove the clips that are still in the mounting points on the body using the Omega Clip Tool: T40280 .
- Quantity: 3
Bolt
- 2.5 Nm
- Only driver side
