D-Pillar Trim Panel, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING, A5 SPORTBACK .
-- Free up the D-pillar trim panel in the rear lid seal area.

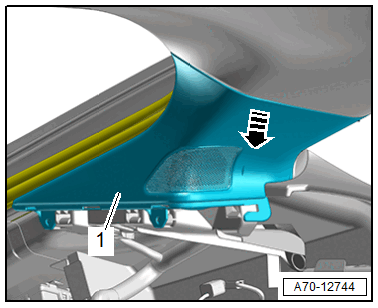

-- Then unclip the D-pillar upper trim panel -1- using the : 80-200 from the D-pillar in direction of -arrow- and remove.
Bracket, Removing
-- If installed, remove the midrange speaker. Refer to COMPONENT LOCATION OVERVIEW - SOUND SYSTEM .

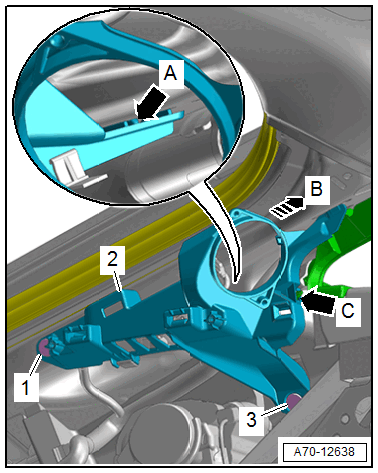

-- Remove the expanding clips -1 and 3- with the : T40172C .
-- Release the tab -arrow A- with a small screwdriver and pull the bracket -2- upward out of the mounts in direction of -arrow B-.
-- Unhook and remove the bracket on the C-pillar trim panel -arrow C-.
-- Unclip the wire.
