Roof Reinforcement, Attaching To Body

Special tools and workshop equipment required

• Assembly adhesive. Refer to the Parts Information.

Procedure

• Headliner removed. Refer to HEADLINER, REMOVING AND INSTALLING .

A5 Coupe:

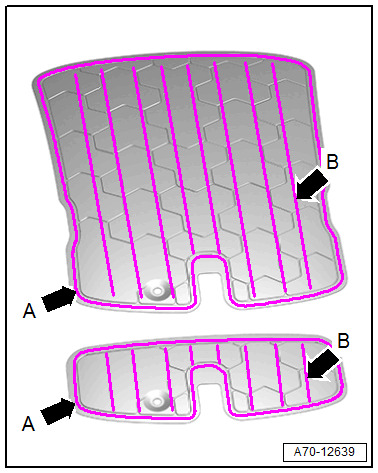

-- Apply the adhesive beads -arrows- as shown on the roof reinforcements.

Courtesy of AUDI OF AMERICA, LLC

• Thickness of the beads on the circumference -A arrows- is approximately 7 mm.
• Thickness of the support beads -B arrows- is approximately 5 mm.
• Apply the adhesive beads according to the line markings on the roof reinforcement.

1. Roof Reinforcement for Equipment Versions with Sliding Sunroof
2. Roof Reinforcement for Equipment Versions without Sliding Sunroof

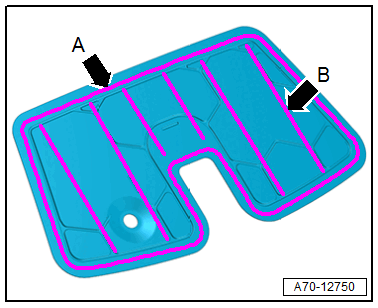

-- North American roof reinforcement versions with sliding sunroof: apply the adhesive bead -arrows- as shown on the roof reinforcement.

Courtesy of AUDI OF AMERICA, LLC

• Thickness of the beads around the circumference -arrow A- is approximately 7 mm.
• Thickness of the support beads -arrow B- is approximately 5 mm.
• Apply the adhesive beads according to the line markings on the roof reinforcement.

A5 Sportback:

Courtesy of AUDI OF AMERICA, LLC

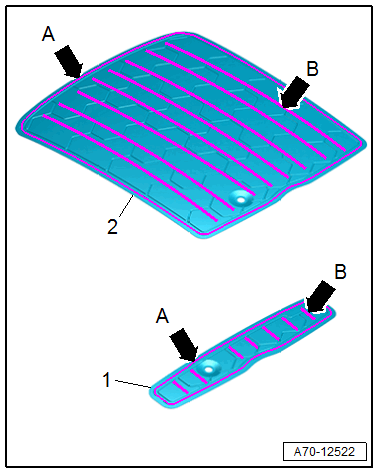

-- Apply adhesive beads -arrows- to the roof reinforcements as shown.

• Thickness of the beads on the circumference -A arrows- is approximately 7 mm.
• Thickness of the support beads -B arrows- is approximately 5 mm.
• Apply the adhesive beads according to the line markings on the roof reinforcement.

-- North American roof reinforcement versions with sliding sunroof: apply the adhesive bead -arrows- as shown on the roof reinforcement.

Courtesy of AUDI OF AMERICA, LLC

• Thickness of the beads around the circumference -arrow A- is approximately 7 mm.
• Thickness of the support beads -arrow B- is approximately 5 mm.
• Apply the adhesive beads according to the line markings on the roof reinforcement.

Versions Equipped with a Sliding Sunroof:

Courtesy of AUDI OF AMERICA, LLC

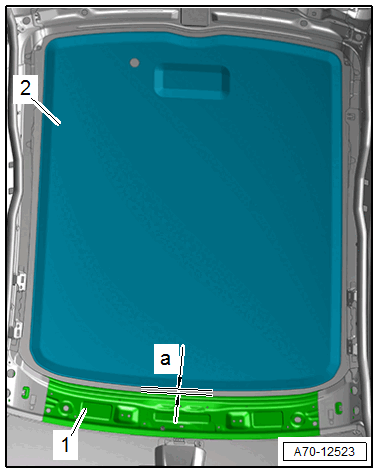

-- Mount the roof reinforcement -2- centered between the outer sides and at a distance -a- from the bow -1- on the roof.

• Dimension -a- approximately 15 mm.

-- Press the roof reinforcement on the roof surface.

-- Wipe off any adhesive residue.

Versions without Sliding Sunroof:

Courtesy of AUDI OF AMERICA, LLC

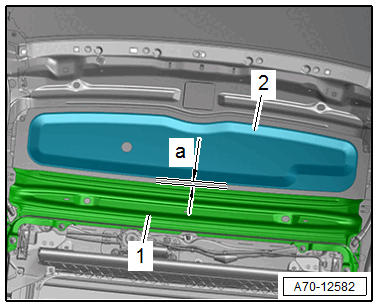

-- Mount the roof reinforcement -2- centered between the outer sides and at a distance -a- from the bow -2- on the roof.

• Dimension -a- approximately 15 mm.

-- Press the roof reinforcement on the roof surface.

-- Wipe off any adhesive residue.

Further installation is the reverse order of removal.
