Rear Pull Handle, Removing And Installing: Removing

-- Remove the door trim panel. Refer to REAR DOOR TRIM PANEL, REMOVING AND INSTALLING .

-- Place the door trim panel on a soft surface.

-- Disconnect the connector for the switch at the back of the door trim panel.

-- Remove the bolts -arrows-.

Fig 1: Rear Pull Handle

Courtesy of AUDI OF AMERICA, LLC

-- Remove the pull handle with the armrest -1- from the door trim panel.

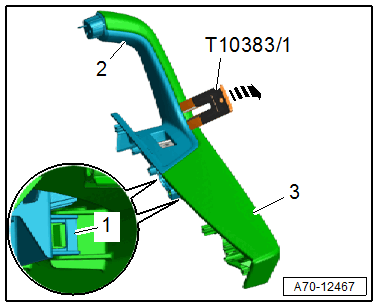

-- Release the retainers -1- using a small screwdriver. At the same time, unclip the switch mount -2- from the pull handle -3- using the : T10383/1  in direction of -arrow-.

Fig 2: Rear Pull Handle

Courtesy of AUDI OF AMERICA, LLC

-- Release the remaining retainers and remove the switch mount.
