Spare Tire Well Trim, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the rear luggage compartment floor.
-- Remove the tool box.
-- Equipped on some models: remove the spare tire.
-- Equipped on some models: remove the subwoofer. Refer to COMPONENT LOCATION OVERVIEW - SOUND SYSTEM .

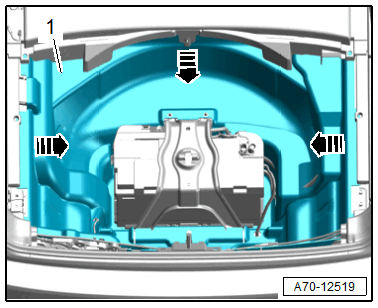

-- Pull the spare tire well trim -1- out at the sides from under the luggage compartment side trim panels and also at the front from under the luggage compartment floor in direction of -arrows-.
-- Disengage the spare tire well trim and remove it.
