Rear Lid Lower Trim Panel, Removing And Installing, A5 Cabriolet: Removing

-- Unclip the rear lid latch trim panel -1- using the : T40233  in the direction of the -arrow-.

Fig 1: Identifying Rear Lid Lock Trim -1- In Direction Of -Arrow-, Removal

Courtesy of AUDI OF AMERICA, LLC

-- Remove the emergency triangle from the bracket by pressing the release.

Fig 2: Removing Emergency Triangle Bracket

Courtesy of AUDI OF AMERICA, LLC

-- Release the retaining tabs using a screwdriver in direction of -arrows- and remove the emergency triangle bracket -1-.

-- Unclip the stop strip -1- using the : 3409  in direction of -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Repeat the procedure on the opposite side.

-- Remove the bolt -1-.

Courtesy of AUDI OF AMERICA, LLC

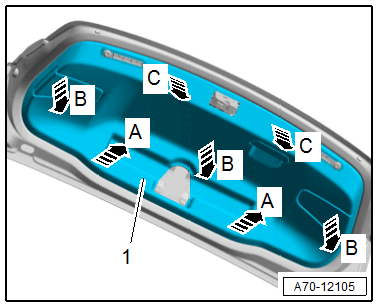

-- Unclip the rear lid trim panel -1- starting at the top of the rear lid in direction of -A arrows- using the : 80-200  .

Courtesy of AUDI OF AMERICA, LLC

-- Unclip the side and center of the rear lid trim panel from the rear lid in direction of -B arrows-.

-- Unclip the lower rear lid trim panel from the rear lid in direction of -C arrows- and remove.
