Overview - Luggage Compartment Side Trim Panel, A5 SPORTBACK

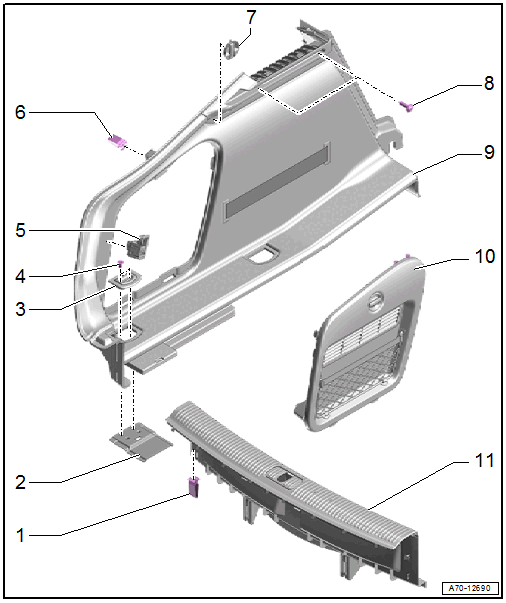

Fig 1: Exploded View Of Luggage Compartment Side Trim Panel (A5 Sportback)

Courtesy of AUDI OF AMERICA, LLC

1. Clip
   • Replace damaged or deformed clips
   • Insert in the trim panel
   • Remove any clips remaining in the mounting points using the Omega Clip Tool: T40280  and insert them into the trim panel for installation.
   • Quantity: 4
2. Tie Down Bracket
   • Not for A5 g-tron
   • Removing and Installing. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING, A5 SPORTBACK .
3. Tie Down
   • Removing and Installing. Refer to TIE DOWN, REMOVING AND INSTALLING .
   • Quantity: 2
4. Bolt
   • 9 Nm
   • Quantity: 2
5. Trailer Hitch Button Trim
   • Equipped on some models
   • Removing and Installing. Refer to OVERVIEW - CONTROLS IN LUGGAGE COMPARTMENT .
6. Clip
   • Replace damaged or deformed clips
   • Insert in the trim panel
   • Remove any clips remaining in the mounting points using the Omega Clip Tool: T40280  and insert them into the trim panel for installation.
   • Quantity: 3
7. Bag Hooks
   • Removing and Installing. Refer to BAG HOOK, REMOVING AND INSTALLING .
8. Bolt
   • 1.5 Nm
   • Quantity: 2
9. Luggage Compartment Side Trim Panel
   • Removing and Installing. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING, A5 SPORTBACK .
   • Press on until it engages audibly
   • Stretch the lip of the rear lid seal over
10. Service Cover
11. Lock Carrier Trim Panel
    • Removing and Installing. Refer to LOCK CARRIER TRIM PANEL, REMOVING AND INSTALLING .
    • Must engage in the pins
    • Press on until it engages audibly
    • Stretch the lip of the rear lid seal over
