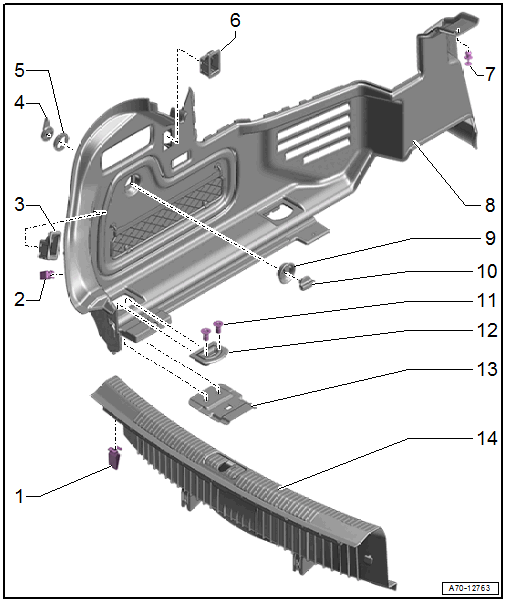

Overview - Luggage Compartment Side Trim Panel, A5 Cabriolet
WARNING: This page is about a different variant/trim than selected.
- Clip
- Replace damaged or deformed clips
- Insert in the trim panel
- Remove any clips remaining in the mounting points using the Omega Clip Tool: T40280 and insert them into the trim panel for installation.
- Quantity: 4
- Clip
- Replace damaged or deformed clips
- Insert in the trim panel
- Remove any clips remaining in the mounting points using the Omega Clip Tool: T40280 and insert them into the trim panel for installation.
- Quantity: 3
- Trailer Hitch Button Trim
- Equipped on some models
- Removing and Installing. Refer to OVERVIEW - CONTROLS IN LUGGAGE COMPARTMENT .
- Lock Bolt
- For service cover
- Clip into the knob
- Lock Disc
- For service cover housing
- Clip on the housing
- Trim
- For convertible top compartment enclosure control button
- Clip into the trim panel
- Expanding Clip
- Remove using the Pliers: T40172C
- Luggage Compartment Side Trim Panel
- Removing and Installing. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING, A5 CABRIOLET .
- Press on until it engages audibly
- Stretch the lip of the rear lid seal over
- Housing
- For service cover locking mechanism
- Clip into the lock disc
- Knob
- For service cover locking mechanism
- Clip into the lock bolt
- Bolt
- 9 Nm
- Quantity: 2
- Tie Down
- Removing and Installing. Refer to TIE DOWN, REMOVING AND INSTALLING .
- Quantity: 2
- Tie Down Bracket
- Removing and Installing. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING, A5 CABRIOLET .
- Lock Carrier Trim Panel
- Removing and Installing. Refer to LOCK CARRIER TRIM PANEL, REMOVING AND INSTALLING .
- Must engage in the pins
- Press on until it engages audibly
- Stretch the lip of the rear lid seal over
