Light Switch Trim, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the instrument panel cover on the driver side. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .

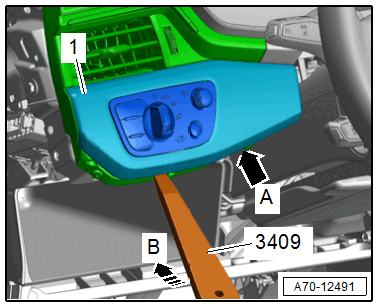

-- Remove the expanding clip/screw -arrow A-.
-- Unclip the light switch trim -1- with the light switch using the : 3409 in direction of -arrow B-.
-- Disconnect the connector and remove the light switch trim with the light switch.
