Instrument Panel, Removing And Installing: Installing

WARNING: This page is about a different variant/trim than selected.

Install in reverse order of removal and note the following:

NOTE:

Note the allocation of the airbag to the instrument panel. Refer to the Parts Information.

-- Set the instrument panel in place and guide the connectors through the openings in the instrument panel.

-- Check if there is a rubber buffer -3- on the instrument panel mount -2- at the bottom of the windshield frame.

-- When sliding on the instrument panel -1-, make sure the instrument panel mounts engage in the box-shaped profiles on the bottom side of the instrument panel.

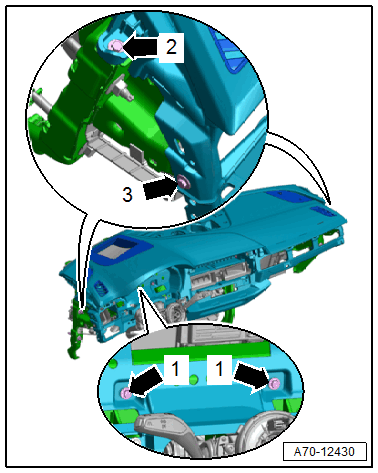

-- Tighten the instrument panel screws in the sequence -arrows 1, 2 and 3-.

GWWA70-12430Courtesy of AUDI OF AMERICA, LLC

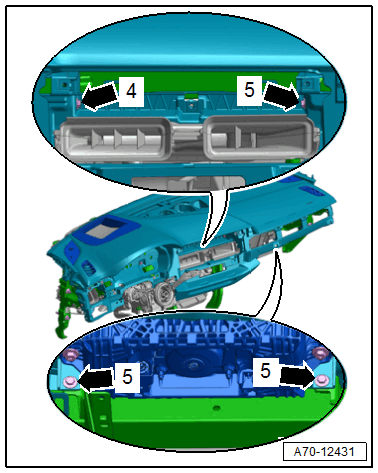

-- Tighten the instrument panel screws in the sequence -arrows 4 and 5-.

GWWA70-12431Courtesy of AUDI OF AMERICA, LLC
WARNING:

Risk of injury due to involuntary deployment.

  • Pay attention to the safety precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING ON PYROTECHNIC COMPONENTS .
  • Before handling pyrotechnic components (for example, connecting a connector), the person handling it must "discharge static electricity". For example, this can be done by briefly touching the door striker.
NOTE:

Make sure the connectors are pushed in all the way and that they engage audibly.

WARNING:

Repairing pyrotechnic components (for example the airbag and seat belt tensioner) incorrectly increases the risk of injuries due to unintentional deployments when the battery is connected.

  • The ignition must be on when connecting the battery.
  • Make sure that no one is inside the vehicle at the time when the battery is connected.

-- Connect the battery ground cable with the ignition switched on. Refer to BATTERY, DISCONNECTING AND CONNECTING .

WARNING:

Repairing pyrotechnic components (for example the airbag and seat belt tensioner) incorrectly increases the risk of injuries due to unintentional deployments when the ignition is switched on.

  • If the ignition is not switched on after the battery is reconnected - >>indicator lamps in the instrument cluster do not light up<< - the ignition (key/button) may only be switched on when the driver seat is positioned all the way back.
NOTE:

If the Airbag Indicator Lamp -K75- indicates a fault, check the DTC memory, erase it and check it again. Refer to Vehicle Diagnostic Tester.
