Instrument Panel Side Cover, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Pry off the instrument panel side cover -1- using the : 3409  in direction of -arrow-.

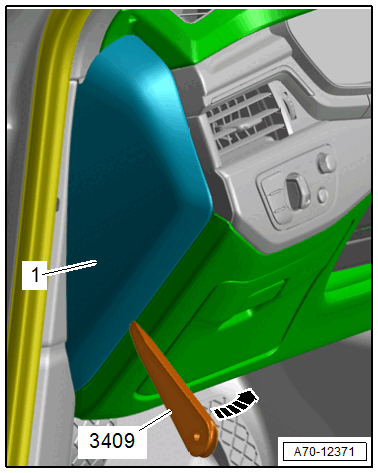

Fig 1: Instrument Panel Side Cover
GWWA70-12371Courtesy of AUDI OF AMERICA, LLC

-- Release the remaining retainers, pull the instrument panel cover out of the A-pillar gap cover and remove it.
