Instrument Cluster Trim, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Move the steering wheel as far to the rear and down as possible. Use the full steering column adjustment range for this.

-- Remove the instrument panel vent on the driver side. Refer to DRIVER SIDE INSTRUMENT PANEL VENT, REMOVING AND INSTALLING .

-- Remove the instrument panel vent on the front passenger side. Refer to FRONT PASSENGER SIDE INSTRUMENT PANEL VENT, REMOVING AND INSTALLING .

-- Remove the bolt -2-.

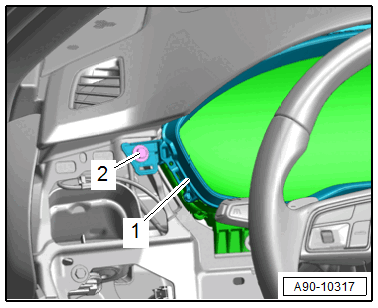

Fig 1: Instrument Cluster Trim

Courtesy of AUDI OF AMERICA, LLC

-- Remove the screw on the opposite side.

-- Remove the instrument cluster trim -1-.
