Display Control Head Trim, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Move the steering wheel as far up and backward as possible to be able to use the entire steering column adjustment range.
-- Remove the instrument panel cover on the driver side. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .

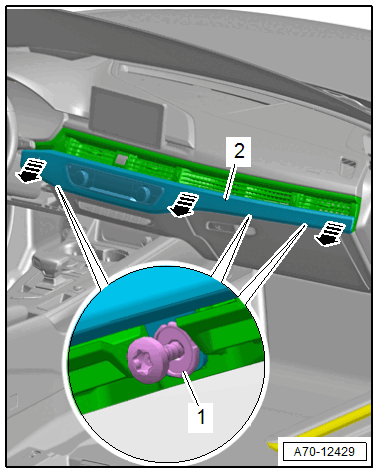

-- Open the glove compartment lid and remove the expanding clips/screws -1-.
-- Unclip the trim -2- with the A/C display control head using the : T10383/1 in direction of -arrows-.
-- Disconnect the connectors and remove the trim with the A/C display control head.
